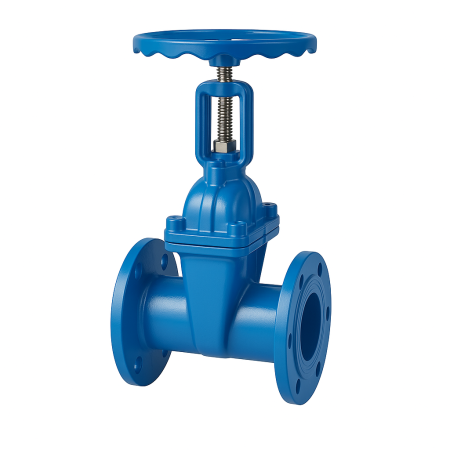

Gate Valves - ANSI
Gate valves are designed to fully open or completely shut off a pipeline. Installed as gate or shut-off valves, they are not intended for flow regulation. Operation is typically manual via a Handwheel.
Key Features
Haeger gate valves allow full opening or closing of pipelines with minimal pressure loss. Thanks to their robust construction and high resistance to temperature and media, they are suitable for a wide range of industrial applications. They can be operated manually or via gearbox and withstand temperatures from -196 °C to +600 °C and pressures up to 400 bar.
Nearly pressure-loss-free flow
Fully open gate valves provide an unobstructed flow path, ensuring minimal pressure loss. This makes them well suited for applications with high flow rates and efficiency requirements.
Robust and versatile
Suitable for water, oil, gas, steam, and abrasive media. Their robust construction makes gate valves suitable for a wide variety of media. Depending on the design, they can reliably withstand extreme conditions with temperatures from -196 °C to +600 °C and pressures up to 400 bar.
Highly reliable shut-off technology with low energy consumption
The gate moves precisely along a rising stem via manual or gearbox operation, allowing pipelines to be fully opened or closed safely and permanently without pressure surges or turbulence.
Haeer Gate Valves - ANSI Standard
Datasheets
Nominal size: 3” to 60”
Pressure class LBS: 150, 300, 600, 900, 1500, 2500
Body materials: 1.0619, A216 WCB, 1.4408, 1.4306, 1.4404, 1.1138, 1.4308, 1.5419, 1.7357, 1.7379, CF8M, CF3M, CF3, WC1, WC6, WC9, LCB, LCC
Description of our Gate Valves:
- Face-to-face dimension according to ASME B16.5
- Valves with conformity declaration Test Certificates API 598
- Flanged ends (ASME B16.5), welded ends, or socket weld ends
- Full bore or as per datasheet
- TA-Luft / Low Emission Packings
- Stellite coating optional
- NACE MR 0175 compliant
- ATEX certification
- Flexible wedge design
- ISO-TOP flange (for actuator mounting)
- Actuation options: pneumatic, electric, hydraulic, gas-over-oil, or gear-operated handwheel
- Extension bonnet / stem extension
- Special coatings available according to customer requirements
- TA-LUFT compliant (according to VDI 2440)
- Optional stellited versions (STELLITE hardfacing)
- Emissions leak test according to EN ISO 15848-2 B
- Operating and maintenance manuals available in various languages
- EAC TR-TS conformity declarations for export and use in the Russian Federation, Belarus, or Kazakhstan (EAC), valid for 1, 3, or 5 years.
- EAC GOST TR TS 010/2011 (Machinery Directive)
- EAC GOST TR TS 032/2013 for valves ≥ DN25
- Valve passport TP according to GOST 2.601 – 2006
- TÜV inspections (3.2 certification)
Gate Valve (Forged Small, Flanged Ends)
Datasheets
Gate Valves / Forged Steel Gate Valves
Size: 1/4″ to 2-1/2″
LBS: 150, 300, 600, 900, 1500, 2500
Body: A105N, F304, F316, F321, F316Ti, F5, F12, F22
Description of our Gate Valves:
- Face-to-face dimensions according to ASME B16.10
- Valves with Test Certificate API 598
- Flanged end connection
- Optional TA-LUFT / Low Emission Packings available
- Outside screw and yoke (OS&Y) with manual handwheel operation
- Flanged valves are integrally forged
- Solid wedge
- Optional stellited version (STELLITE) for extended service life
- Depending on material selection, suitable for water, steam, oil, gas, or other aggressive media
- ISO-TOP flange for actuator mounting
- Extension bonnet / stem extension available
- Custom coating available upon request
- Optional TA-LUFT systems according to VDI 2440
- Emission leak test in accordance with EN ISO 15848-2 B
- Operating and maintenance manuals available in various languages
- EAC TR-TS conformity declarations for customs union exports (Russia, Belarus, Kazakhstan), valid for 1, 3, or 5 years
- EAC GOST TR TS 010/2011 (Machinery Directive) or EAC GOST TR TS 032/2013 for valves ≥ DN25
- Technical Passport (TP) in accordance with GOST 2.601 – 2006
- TÜV certification (3.2) available
Gate Valve (Forged Small)
Data Sheets
Gate Valves / Small Gate Valves
Size: 1/4” to 2-1/2”
LBS: 800, 1500, 2500
Body: A105N, F304, F316, F321, F316ti, F5, F12, F22
Description of our Gate Valves:
- BW WELD ASME B16.25
- SW WELD ASME B16.11
- SCREWED ENDS ASME B1.20.1
- Valves larger than 1” come with a Declaration of Conformity and CE marking according to DGRL97/23/EC
- Optional TA-LUFT (Technical Instructions on Air Quality Control – TA Luft) systems available per VDI 2440
- Bolted bonnet, external stem, and manual handwheel operation
- Solid wedge
- STELLITIZED design optional
- Depending on material selection, small gate valves / gate valves are suitable for water, steam, oil, gas, or other aggressive media
- ISO-TOP flange (for actuator mounting)
- Insulation cover / stem extension
- Special coating according to customer requirements
- TA-LUFT per VDI 2440 | optional
- Emission leak test according to EN ISO 15848-2 B
- Operating and maintenance manuals for gate valves available in various languages
- EAC TR-TS conformity declarations of the Customs Union, independent of order, for export and use of products in the Russian Federation, Belarus, or Kazakhstan (EAC), valid for 1, 3, or 5 years
- EAC GOST TR TS 010/2011 (Machinery directive) or EAC GOST TR TS 032/2013 for valves DN25 and larger
- Valve certificate TP according to GOST 2.601 – 2006
- TÜV approvals (3.2)
Industry - Forged Small Gate Valve
Forged steel gate valves are durable, metal-seated units designed for fully opening or closing pipelines. They are available in carbon or stainless steel, in various configurations (such as bolted bonnet), and with different connection types. Stellite-coated seat surfaces extend service life, TA-LUFT packing reduces emissions, and operation in hazardous (Ex) areas is easily achievable.
The gate valves offered by Haeger Industrial Valves are suitable for a wide range of media, including oil, water, gas, and steam. They withstand temperatures from –320 °F to +1112 °F (–196 °C to +600 °C) and pressures up to 400 bar.
Key Features of Gate Valves
Our high-performance gate valves provide a clear, unrestricted flow path, ensuring dependable opening and closing of pipelines. They handle water, gas, oil, steam, and even media containing solids, which makes them well suited for demanding high-pressure and high-temperature applications - including operation in hazardous (Ex-rated) environments. Optional bypass lines can also be integrated if required.
Robust gate valves with metal seats
Metal-seated gate valves, developed as early as the 18th century, feature a recessed body seat with a sealing ring to ensure tight shut-off. For abrasive media, the seat can be additionally hard-welded to reduce corrosion and wear. Thanks to their sturdy design, they are particularly suitable for industrial applications with temperatures up to 800 °C – significantly higher than soft-seated variants. A typical drawback is that contaminants in the seat may prevent complete closure and affect leakage performance.
Gate valves with rising stem
The rising stem is connected to the wedge and enables the valve to open or close. Because these valves are designed with external stem threads, the stem can be easily lubricated, ensuring smooth operation even after long periods of use.
Bypass to equalize differential pressure
For larger nominal sizes, bypass lines can be installed. These bypass valves equalize the pressure between the wedge plates, allowing easier operation. They can also delay the filling of pipelines. To prevent stagnation, the gate valve can be closed while the bypass valve remains open, maintaining continuous flow.
Valve design
A gate valve is an industrial shut-off valve in which the closure element moves linearly and perpendicular to the flow in the sealing area. Gate valves are manufactured for small to large nominal sizes and cover all pressure and temperature ranges. A key characteristic is the full-bore design when open, resulting in very low pressure losses and higher flow velocities. Another advantage is the valve’s suitability for pigging.
Depending on the closure element, designs include solid-wedge and flexible-wedge types. Another design criterion is the bonnet-to-body connection, available as welded bonnet, bolted bonnet, or pressure seal.
External stem thread (outside screw and yoke)
The stem operates with an axial lifting movement. Unlike globe valves, the handwheel does not rise. The external thread allows the stem position to be checked visually, making it easy to determine the wedge position. Although the stem is exposed to contamination, it can also be cleaned and lubricated without difficulty.
Connection types
Gate valves are available with flanged, socket-weld or butt-weld ends. Flanged connections are the standard method for attaching the valve to the pipeline and enable gasket replacement without major axial movement of the pipeline.
